Enterprise Saas
Operational Dashboard
Turning data overload into decision support for enterprise support engineers
Year
2026
Industry
Enterprise Saas, B2B Integration Technology.
Scope
Design challenge | Enterprise Recruitment Brief
Context
This was a design challenge set by a large enterprise EDI software company. EDI (Electronic Data Interchange) is the system that moves critical business data - invoices, orders, delivery notices - between companies automatically. When it breaks, the downstream impact is immediate: delayed shipments, failed payments, broken partner relationships.
The support engineers managing these failures needed a single, fast, intelligent workspace. They had the opposite.
Challenges
Context Switching
Errors lived in one tool. Tickets in another. Message detail required a third page entirely. Every transition broke focus and cost time.This created 4 recurring problems:
Everything looked equally important
No visual hierarchy meant no triage. Engineers had to read every row to find the fire.
Errors and tickets were disconnected
Raising a ticket meant leaving the error view, losing context, and manually re-entering information that was already on screen.
Priority was invisible
The ticket board had no clear urgency structure. Urgent and routine sat side by side.
Design Goal
Design a single workspace where an engineer can identify the highest-priority issue, understand its full context, and take action - without leaving the screen.
Approach
I had no direct user access, so I built understanding two ways: AI-assisted persona modelling to define the support engineer's mental model under pressure, and a review of ecosio's published EDI dashboard research to ground the solution in industry-validated patterns.
From there, I mapped the engineer's happy path - the sequence from first alert to resolution - and used it as the structural backbone of the entire interface.
Mapping the happy path
Before sketching anything, I mapped the core user flow in FigJam - the sequence of steps an engineer takes from first seeing an alert to resolving the underlying issue. The goal was to identify where the current workflow had dead ends, unnecessary detours, or missing connections.
This flow became the structural backbone of the dashboard. Every section of the interface corresponds to a stage in that journey.

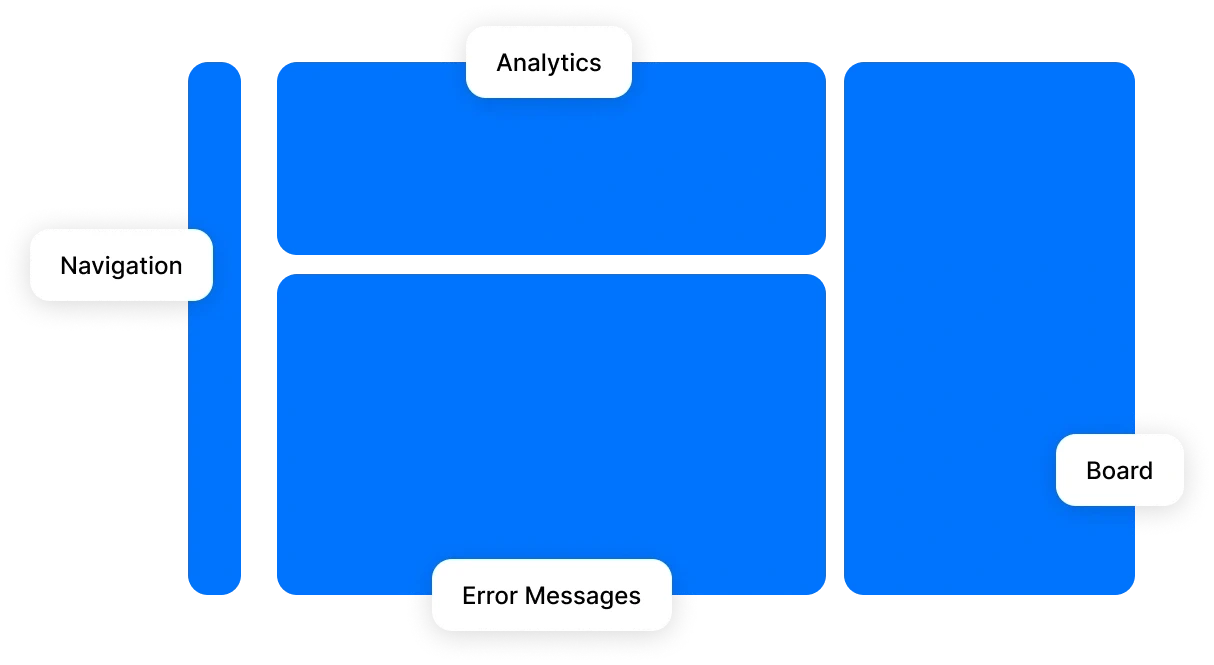

Defining the information architecture
The biggest architectural decision was what to show, in what order, and at what level of detail. EDI data is dense and multi-layered. Showing everything creates noise showing too little means engineers miss context they need to act.
I structured the interface as a narrative funnel - each layer answers a more specific question than the one before it:
What is the overall situation? → Error analytics at the top
Which specific messages need attention? → Message table in the middle
What action needs to be taken? → Ticket board and inline actions at the right

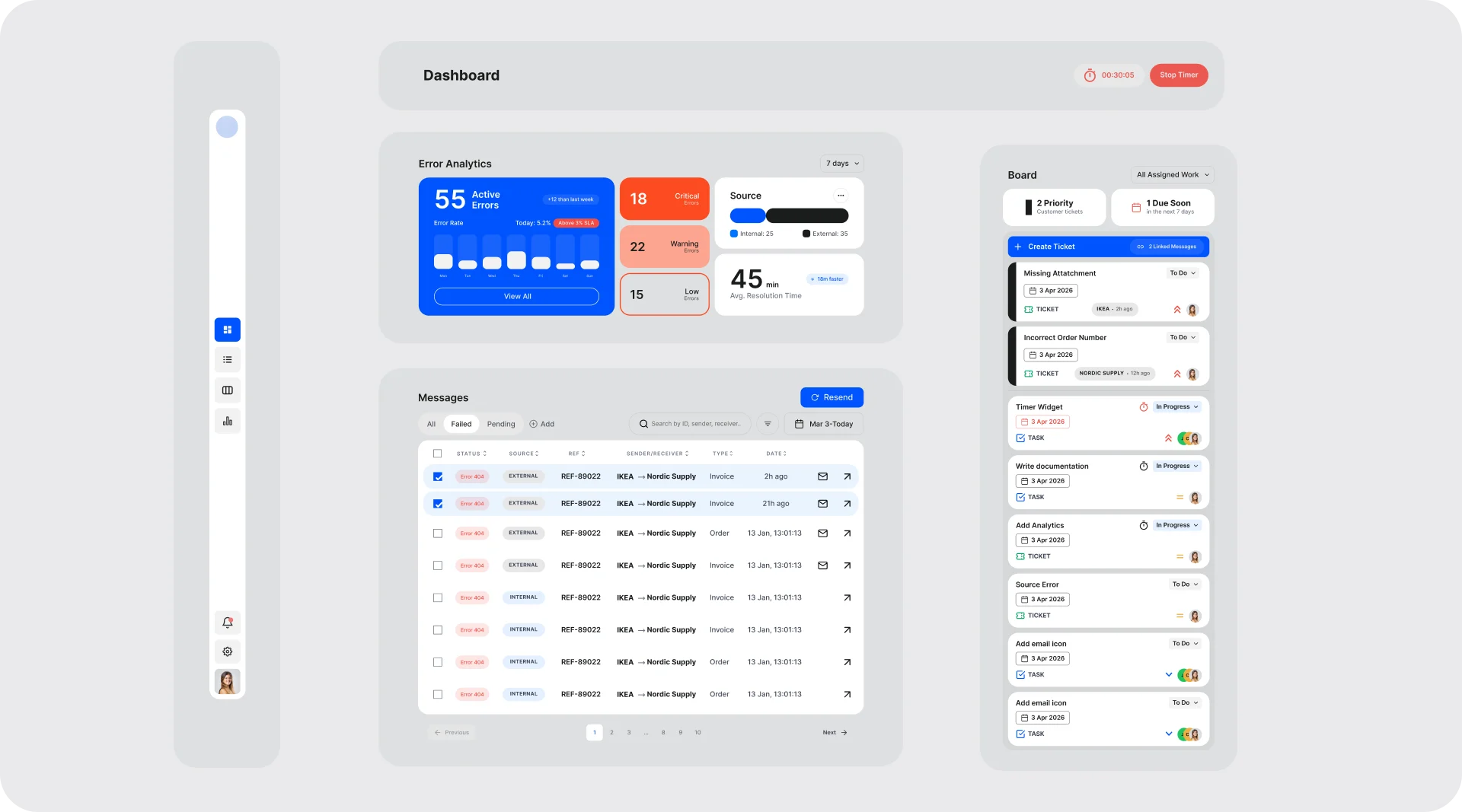

Layout and visual language
Layout exploration started with low-fidelity sketches focused on modularity and breathing room. The visual approach follows a functional minimalist direction - components earn their place through utility. Nothing is decorative.
Design Decisions
Selective signalling - Every Color earns its place
The temptation in data-heavy interfaces is to tag, colour, and iconify everything. The result is the same overload you started with, just more colourful.
Every visual element in this dashboard passed a single test: does this help the engineer find the fire faster, or does it add noise? If it couldn't answer that question, it was removed.
The result: signals stand out because the rest of the interface stays quiet.

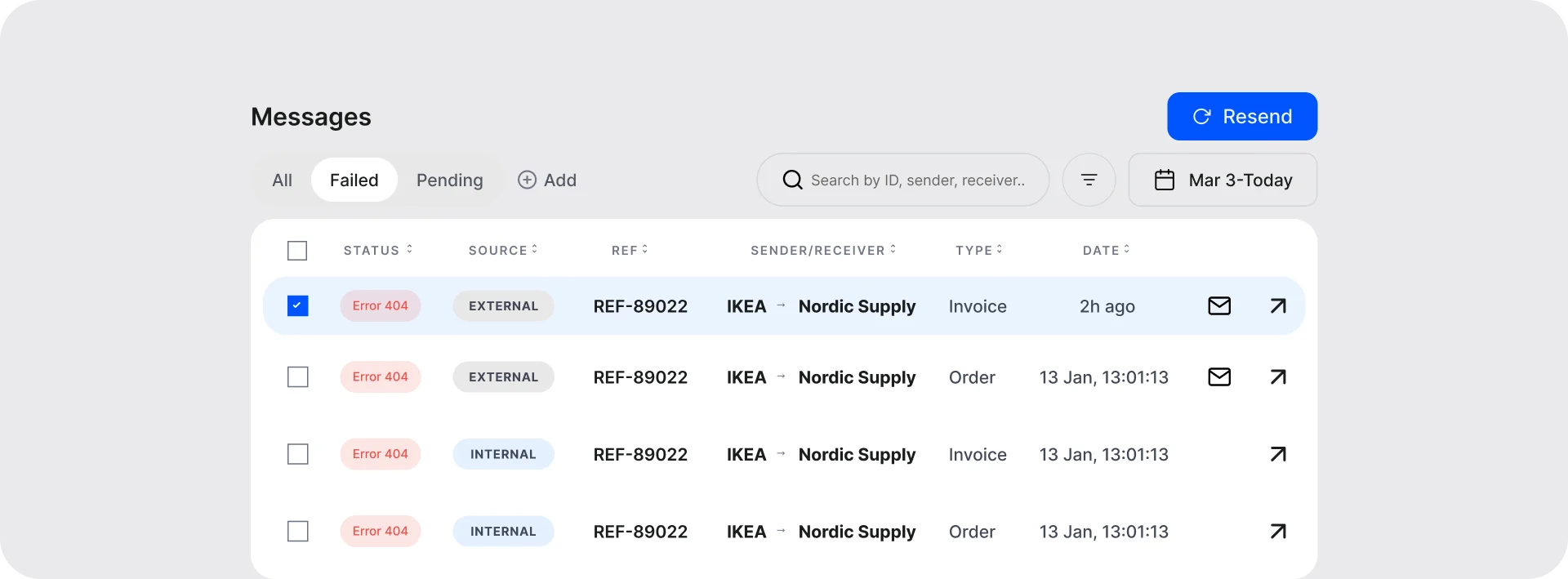

The message table - From log to story
Instead of raw data rows, each message answers four questions in sequence:
Questions
Fields
Is there a fire?
Status + Source
Who's involved?
Reference + Partner
What's the impact?
Message type + Relative time
What can I do?
Resend / Email / Details

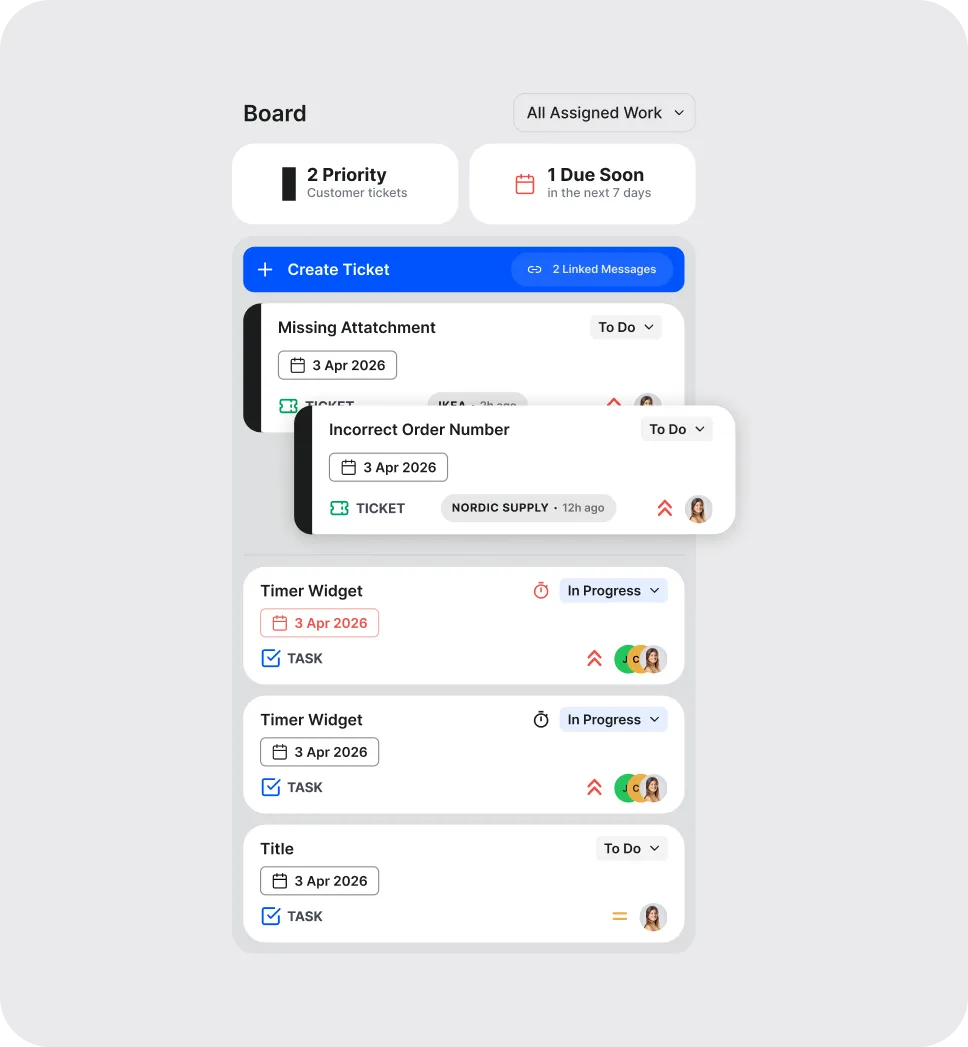

One iteration that mattered - Priority clarity
During an AI-simulated audit of the completed dashboard, one issue emerged clearly: the priority hierarchy within the ticket board was not immediately legible. Cards of different priority levels were visually similar enough that the distinction required active reading rather than passive scanning.
One change - a visual separator between priority tiers - made the structure legible in under a second. Small change, significant impact on triage speed.

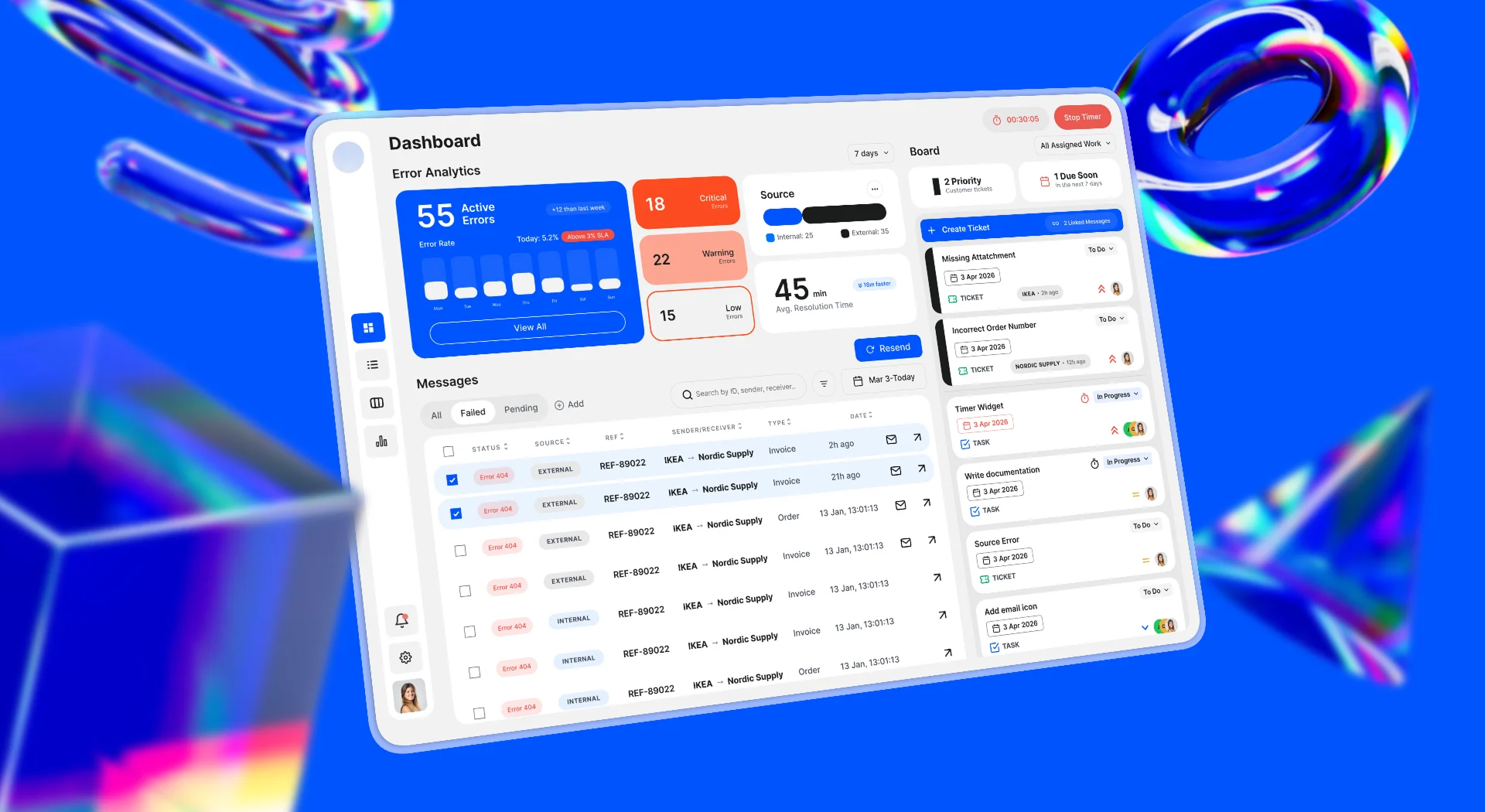

Final Solution
The completed design delivers 3 interconnected views within a single interface:

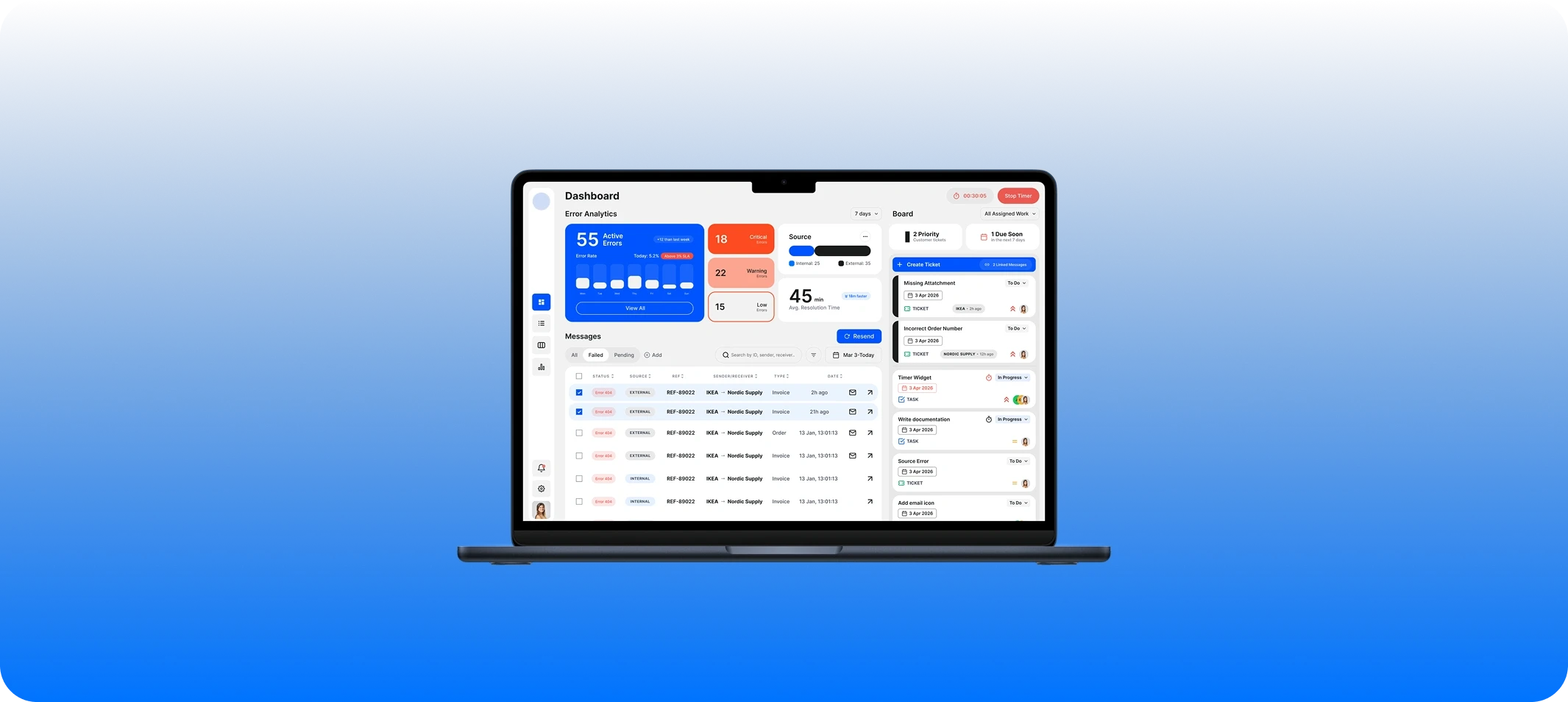

Dashboard view. Error analytics, message table, and ticket board in one non-scrolling layout. An engineer can move from situational awareness to specific action without navigating away.
Message detail drawer. Full message inspection is accessible inline via a side drawer, keeping the dashboard context intact while surfacing the depth of information needed for investigation.
Ticket creation modal. Contextual, connected, and designed for continuation - linked messages, priority setting, and a secondary action that keeps the engineer in flow.
Reflections
What I would do differently with more time
The persona work in this project was AI-assisted rather than research-based. Given access to actual support engineers, I would have conducted structured interviews focused on two things: how they currently prioritise during high-volume incidents, and what information they most frequently have to go looking for. Both of those questions would likely have sharpened the message table hierarchy and the ticket board logic.
I would also have tested the dashboard with a time-pressured scenario — giving a user a specific error to find and resolve, and watching where they hesitated. Hesitation is where the design has failed.
What the project demonstrated
This wasn't a visual problem. It was an information architecture problem.
The question was never how should this look - it was what does an engineer need to know, in what order, and what should they be able to do without leaving this view?
Getting that right made every visual decision easier to defend.
AI Integration
When asked how I'd extend this dashboard with AI, here's the thinking:
The principle: AI should shrink the distance between noticing a problem and resolving it. Every application below was evaluated against that - if it didn't make triage faster or more confident, it didn't belong.
Error pattern clustering: Group messages that share a root cause. Instead of 50 individual failures, the engineer sees one problem with 50 instances.
Predictive priority scoring: Static priority tags don't account for context. A failed invoice at 9am Monday from a high-volume partner is more urgent than the same error on a Sunday night. AI scores dynamically based on partner volume, message type, and time - giving engineers a faster starting point when the queue is full.
Anomaly detection: Clustering handles the known. Anomaly detection handles the unknown. A message that doesn't fit any established pattern is often the earliest signal of a new systemic issue. It gets a distinct visual flag - not competing with routine errors, impossible to miss.
Resolution suggestions: When a pattern is recognised, the system surfaces what resolved it historically. The engineer reads, validates, and acts - rather than diagnosing from scratch.
Smart ticket pre-population: AI drafts the title, description, and suggested priority from message content. The engineer edits rather than writes from blank - staying in resolution mode, not documentation mode.
Natural language search: During a live incident, precise filter syntax creates friction at the worst moment. Engineers type how they think: "invoices from Nordic Supply failing this week" - and the system understands.
This project was completed as a design challenge submission. AI tooling was used for persona development, research synthesis, and solution auditing. All design decisions, structural rationale, and visual direction are my own.
